JK42RLSBO - 3.5-4.5 in. ADX 2.0 Adventure Series Remote Reservoir Rear Coilover Kit (Jeep JK)

JK42RLSBO – 3.5-4.5 in. ADX 2.0 Adventure Series Remote Reservoir Rear Coilover Kit (Jeep JK)

SKU: JK42RLSBO

Jeep Wrangler JK.
3.5-4.5 in. ADX Rear Coil-Over Upgrade Kit. Fully Bolt-On Coil-Over System with low center of gravity. 2” Reservoir Coil-Over Shocks with 10” of travel & dual springs.

Original price was: $2,735.04.Current price is: $2,461.54.

Categories: ,

Description

Fully Bolt-On Coil-Over System with low center of gravity. ADX 2” Reservoir Coil-Over Shocks with 10” of travel & dual springs. Custom spec valving & tuning. Can be used with any long or short arm system. Works with the OE sway bar & exhaust. Adjustable lift 3.5”- 4.5”.

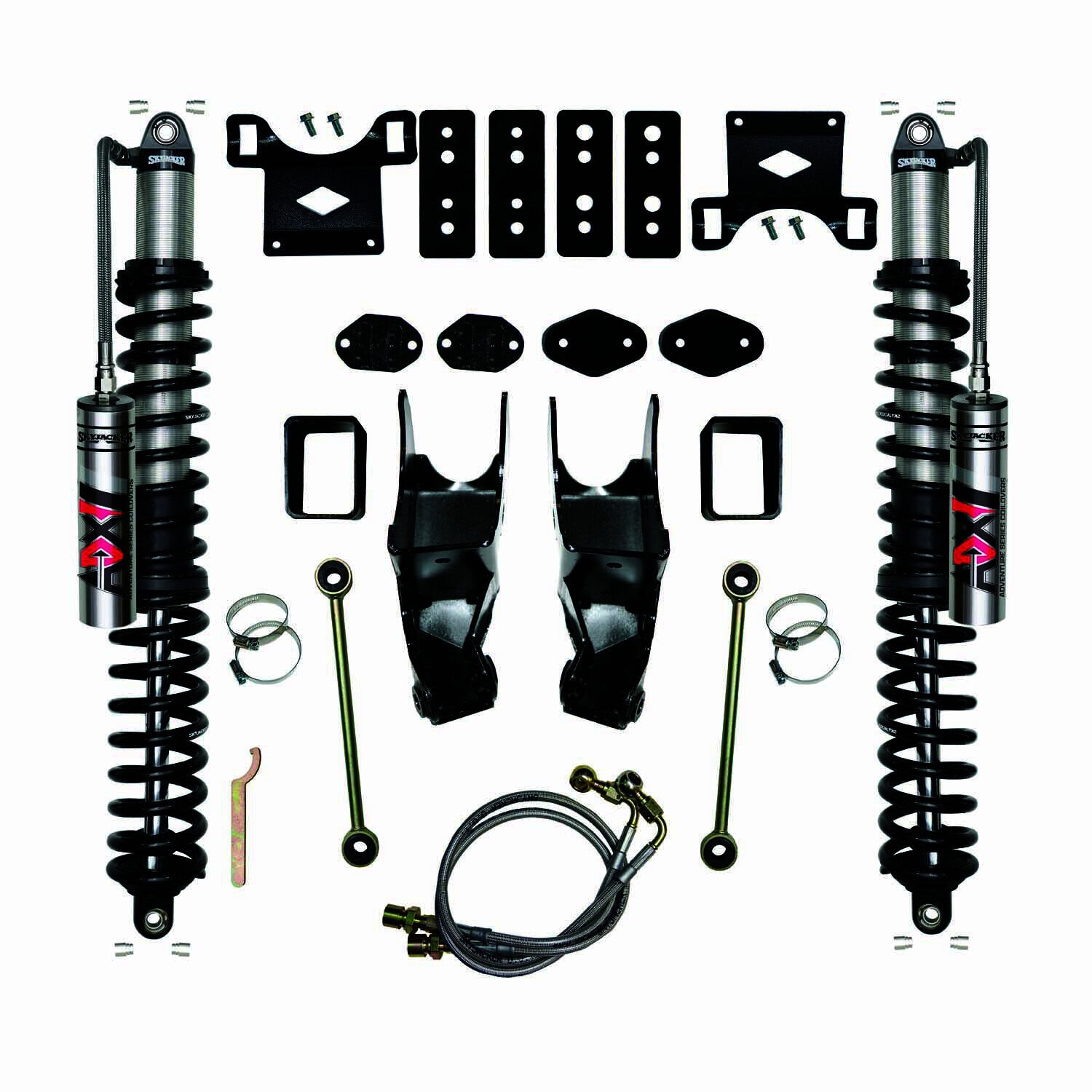

Contents: Kit includes ADX 2″ reservoir coil-over shocks with dual coils, all bolt-on mounting brackets, rear track bar relocation bracket, bump stop spacers, sway bar end links, & extended stainless brake lines.

Notes: Front lower adjustable control arms are required / not included. (Part # JKLL24F-SX / includes Currie Johnny Joints). Front adjustable track bar is recommended (Part # JKFTA717) or the OE track bar must be relocated (not included). An aftermarket driveshaft is required (not included). The recommended wheel back spacing is 4.5″ or less.

Lift Height

3.5-4.5 in.
Hashtag

JK42RLSBO
UPC

803696241456
Max Tire Size

35 x 12.50
Wheel

16-20 x 8-10
Backspacing

4.5 in.
Approximate Install Time 12 Hours
Install Difficulty Advanced - Cutting and Drilling

Download “I-JKRLS” I-JKRLS-REV7.pdf – Downloaded 2922 times – 1.66 MB

Download “I-BL” I-BL.pdf – Downloaded 14877 times – 358.57 KB

YearMakeModelFitment Info
2018JeepWrangler (JK) - 2-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mounting Brackets/Relocation Bracket/Bump Stop Spacers/Sway Bar End Links/Ext. Stainless Brake Lines
2018JeepWrangler (JK) - 4-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mounting Brackets/Relocation Bracket/Bump Stop Spacers/Sway Bar End Links/Ext. Stainless Brake Lines
2016JeepWrangler (JK) - 2-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2016JeepWrangler (JK) - 4-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2015JeepWrangler (JK) - 2-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2015JeepWrangler (JK) - 4-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2014JeepWrangler (JK) - 2-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2014JeepWrangler (JK) - 4-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2013JeepWrangler (JK) - 2-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2013JeepWrangler (JK) - 4-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2012JeepWrangler (JK) - 2-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2012JeepWrangler (JK) - 4-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2011JeepWrangler (JK) - 2-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2011JeepWrangler (JK) - 4-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2010JeepWrangler (JK) - 2-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2010JeepWrangler (JK) - 4-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2009JeepWrangler (JK) - 2-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2009JeepWrangler (JK) - 4-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2008JeepWrangler (JK) - 2-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2008JeepWrangler (JK) - 4-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2007JeepWrangler (JK) - 2-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
2007JeepWrangler (JK) - 4-Door 4WD
  • LeDuc Series Coil Over Kit
  • 3.5-4.5 in. Lift
  • Reservoir Coil Over Shocks with Dual Coils/Mntng Brckts/Relocation Brckt/Bmp Stp Spcrs/Swy Bar End Links/Ext. Stainless Brake Lines
