Name: JK62RLSBO - 4.5-6 in. ADX 2.0 Adventure Series Remote Reservoir Rear Coilover Kit (Jeep JK) | Skyjacker Suspensions
Brand: Skyjacker
SKU: JK62RLSBO
Availability: InStock

Description

Fully Bolt-On Coil-Over System with low center of gravity. ADX 2” Reservoir Coil-Over Shocks with 10” of travel & dual springs. Custom spec valving & tuning. Can be used with any long or short arm system. Works with the OE sway bar & exhaust. Adjustable lift 4.5”- 6”.

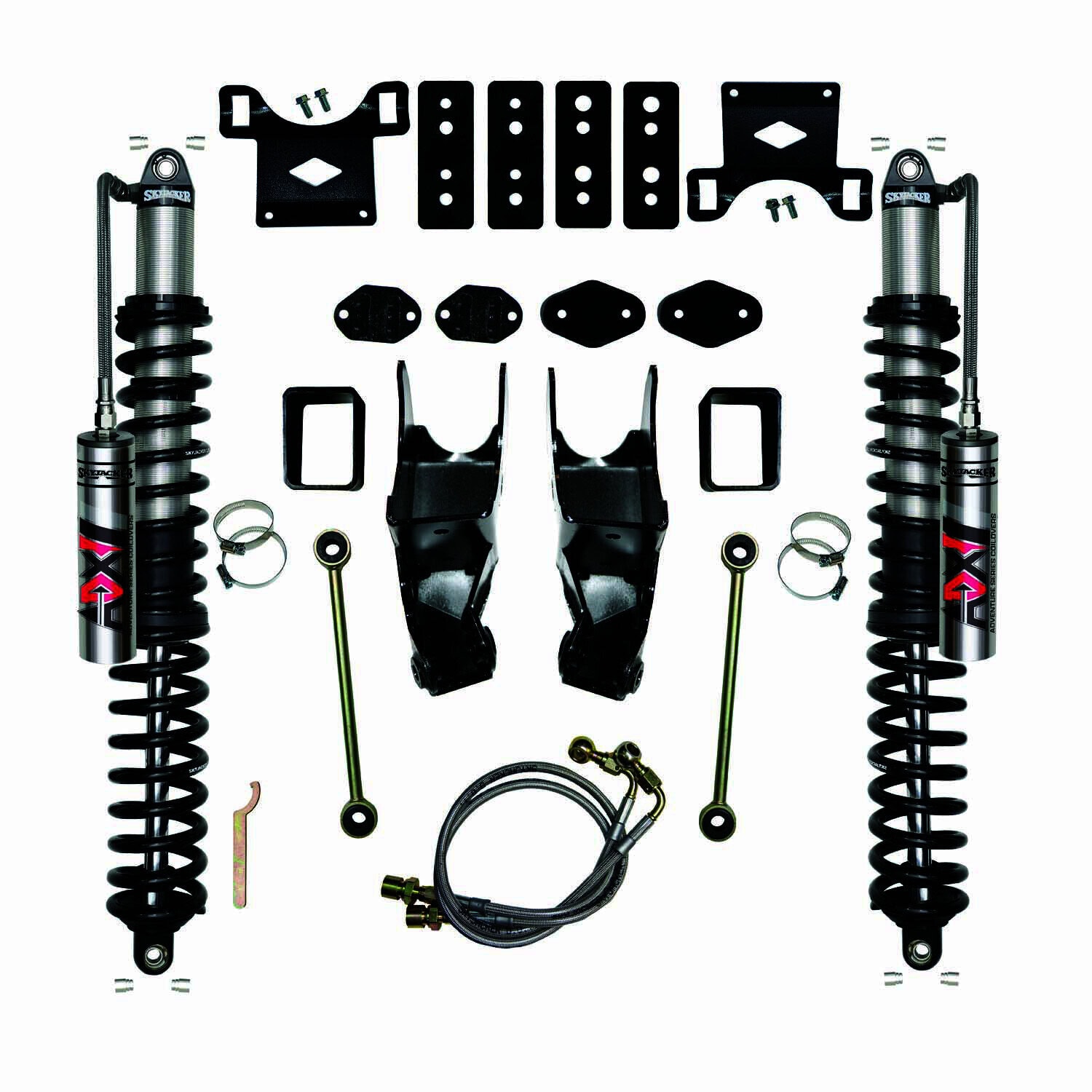

Contents: Kit includes ADX 2″ reservoir coil-over shocks with dual coils, all bolt-on mounting brackets, rear track bar relocation bracket, bump stop spacers, sway bar end links, & extended stainless brake lines.

Notes: On 2 door models, a rear aftermarket driveshaft is required (not included). Rear upper adjustable control arms are required / not included (Part # JKULR26-SX). On 4 door models, a rear aftermarket driveshaft is recommended (not included). Rear lower adjustable control arms are recommended / not required (Part # JKLL24R-SX includes Currie Johnny Joints). The recommended wheel back spacing is 4.5″ or less.

UPC	803696241463
Lift Height	4.5-6 in.
Max Tire Size	37 x 12.50
Wheel	16-20 x 8-10
Backspacing	4.5 in.
Approximate Install Time	12 Hours
Install Difficulty	Advanced - Cutting and Drilling

BOM / Components

Component breakdown for this product.

2 components

Line Component Description Qty UOM Subcomponents

JK62RLS

JK 3.5"-6" REAR C/O SHCK/PR

JK62RLS Subcomponents

Line	Component	Description	Qty
1	SKY2026-PR	2"C/O SHK 26.52"EXT,10"STRK	1
2	2.5X10X200	2.5"ID X 10"L X 200 RATE	2
3	2.5X12X250	2.5"IDX12"LX250RATE C/O SPR	2
4	LSCOWRH-S	SPANNER WRENCH 2.0 C/O	1

JK62RLSB

JK 4.5-6"REAR L/S C/O BRKTS

JK62RLSB Subcomponents

Line	Component	Description	Qty
1	JKLSBORDSL6-B	JKLSBO 6" REAR DRV LWR C/O	1
2	JKLSBORPSL6-B	JKLSBO 6" REAR PAS LWR C/O	1
3	JKLSBORSB-1	JKLSBO REAR SWAY BAR REL BR	2
4	JKLSBORSB-2	JKLSBO REAR SWAY BAR SPC BR	2
5	JKLSBORSU-1	JKLSBO REAR UPPER C/O BRKT	2
6	JKLSBORSU-2	JKLSBO REAR UPR C/O BCK PLT	2
7	JK6RTB-B	JK 6" REAR TRACK BAR BKT	1
8	JKBRC15-B	JK REAR TRK BAR BRACE D44	1
9	SBE504	SWAY BAR LINK JEEP JK REAR	1
10	JKRBL60	REAR BRK LNS,6-7"07>JEEP JK	1
11	JK40RBS-S	JL/JK 4" REAR BUMP STOP BKT	2
12	UN1RR-S	UNI REMOTE RES BRKT / FLAT	2
13	HB-JK40BSSR	HDWR BAG:4"JK BUMP ST SPC R	1
14	HB-JK24RTB	HDWR BAG:JK24RTB TRK BAR BK	1
15	HB-JKBRC15	HDWR BAG: JK REAR BRACE	1
16	HB-JKLSBORSB	HDWR BAG:JKLSBORSB SWAY BAR	1
17	HB-JKLSBORSL	HDWR BAG:JKLSBORSL REAR LWR	1
18	HB-JKLSBORSU	HDWR BAG:JKLSBORSU REAR UPR	1

Showing first 18 of 19 items.

Download “I-JKRLS” I-JKRLS-REV7.pdf – Downloaded 2944 times – 1.66 MB

Download “I-BL” I-BL.pdf – Downloaded 26155 times – 358.57 KB

Year	Make	Model	Fitment Info
2018	Jeep	Wrangler (JK) - 2-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2018	Jeep	Wrangler (JK) - 4-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2017	Jeep	Wrangler (JK) - 2-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2017	Jeep	Wrangler (JK) - 4-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2016	Jeep	Wrangler (JK) - 2-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2016	Jeep	Wrangler (JK) - 4-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2015	Jeep	Wrangler (JK) - 2-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2015	Jeep	Wrangler (JK) - 4-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2014	Jeep	Wrangler (JK) - 2-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2014	Jeep	Wrangler (JK) - 4-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2013	Jeep	Wrangler (JK) - 2-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2013	Jeep	Wrangler (JK) - 4-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2012	Jeep	Wrangler (JK) - 2-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2012	Jeep	Wrangler (JK) - 4-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2011	Jeep	Wrangler (JK) - 2-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2011	Jeep	Wrangler (JK) - 4-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2010	Jeep	Wrangler (JK) - 2-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2010	Jeep	Wrangler (JK) - 4-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2009	Jeep	Wrangler (JK) - 2-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2009	Jeep	Wrangler (JK) - 4-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2008	Jeep	Wrangler (JK) - 2-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2008	Jeep	Wrangler (JK) - 4-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2007	Jeep	Wrangler (JK) - 2-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
2007	Jeep	Wrangler (JK) - 4-Door 4WD	LeDuc Series Rear Coil-Over Upgrade Kit 4.5-6 in. Lift Includes Bolt On Mounting Brackets Bump Stop Spacers Sway Bar Links Stainless Brake Lines
