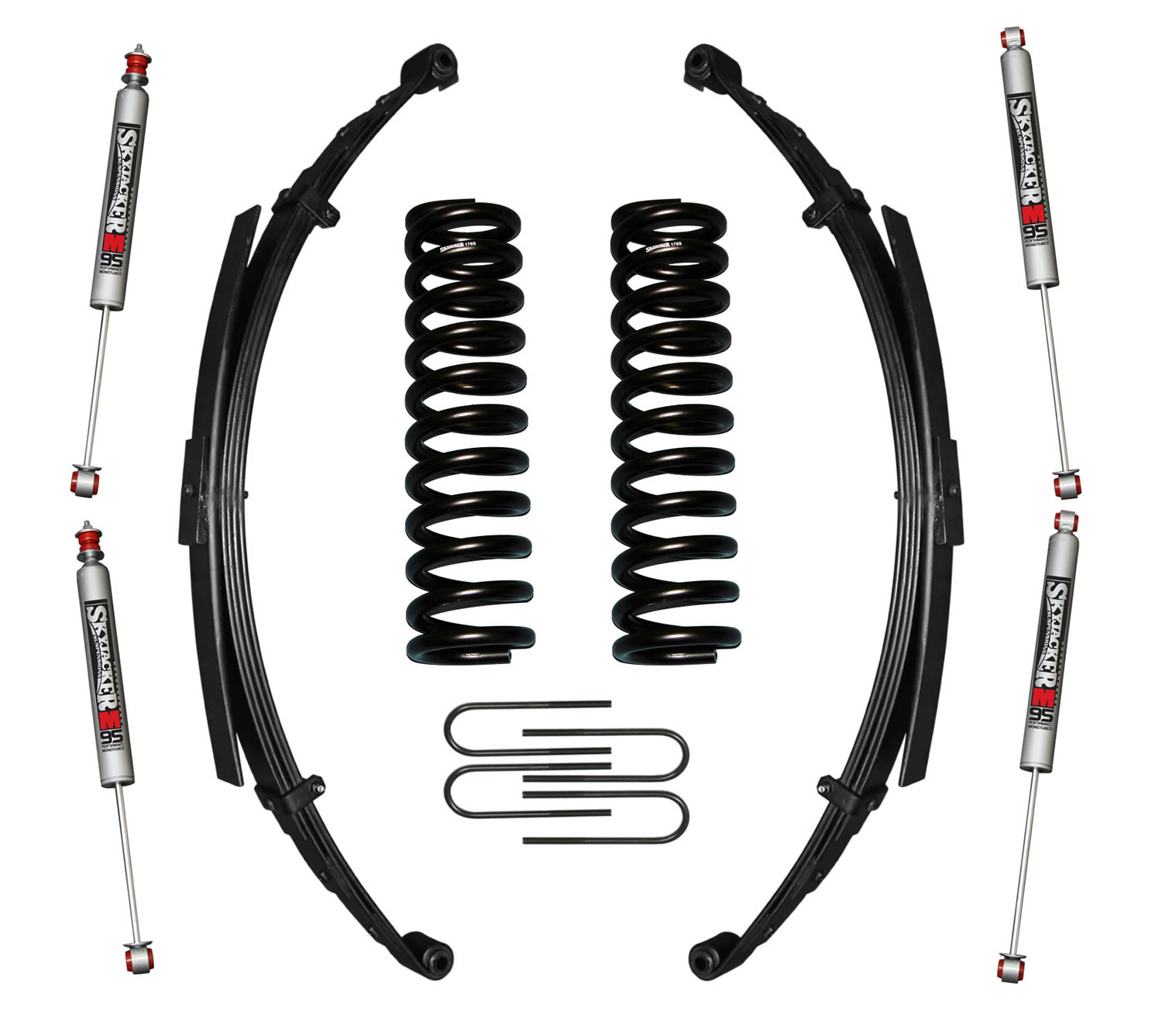

176EBKS – 7 in. Suspension Lift Kit with Front Coils and Rear Leaf Springs
SKU: 176EBKS
7 in. Suspension Lift Kit with Front Coil Springs, Rear Leaf Springs; U Bolt Kit.
From:
Original price was: $1,374.11.$1,236.69Current price is: $1,236.69.
Product Notes Important
1966 Model Year Rear Shocks Requires Changing Last 2 Digit of Part Number 3 Inch Lift XXX55, 5 Inch Lift XXX56, 7 Inch Lift XXX57. 1976-77 Models must change out Draglink and Tie rod to the 1966-75 OE T-Style Steering. Requires Front Adjustable Track Bar Part Number FTBA67. Requires Caster Correction 1966-75 Part Number RAB40, and Part Number CB400, 1976-77 Part Number RAB40, and Part Number CB477. Optional Stainless Steel DOT approved Brakelines available, 3-7 Inch Lift 1966-1977, Front Part Number FBL77, Rear Part Number RBL77. Requires Pitman Arm, Part Number FA307.
- Description
- Product Notes Important
- Product information
- BOM
- Installation Instructions
- Application Notes
1966 Model Year Rear Shocks Requires Changing Last 2 Digit of Part Number 3 Inch Lift XXX55, 5 Inch Lift XXX56, 7 Inch Lift XXX57. 1976-77 Models must change out Draglink and Tie rod to the 1966-75 OE T-Style Steering. Requires Front Adjustable Track Bar Part Number FTBA67. Requires Caster Correction 1966-75 Part Number RAB40, and Part Number CB400, 1976-77 Part Number RAB40, and Part Number CB477. Optional Stainless Steel DOT approved Brakelines available, 3-7 Inch Lift 1966-1977, Front Part Number FBL77, Rear Part Number RBL77. Requires Pitman Arm, Part Number FA307.
| UPC | 803696103822 |
|---|---|
| Lift Height | 7 in. |
| Kit Note | Caster Correction Required; Use Both # RAB40 & # CB400 ( # RAB40 & # CB477 on 76-77 Models)., K9. This Lift also Includes 2 in. Rear Blocks., Pitman Arm Fits Manual & Power Steering. 76-77 Models Must Change Drag Link & Tie Rod Assembly to ?T? Style Like 1966-75 Models. |
| Max Tire Size | 37 x 12.50 |
| Wheel | 15-20 x 8-10 |
| Backspacing | 4 in. |
| Approximate Install Time | 7 Hours |
| Install Difficulty | Intermediate - Optional Adj Track Bar on some years eliminates Cutting and Welding |
BOM / Components
Component breakdown for this product.
| Line | Component | Description | Qty | UOM | Subcomponents | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 177DR | 7" COILS 66-77 BRONCO 4WD | 1 | PR |
177DR Subcomponents
|
||||||||||||
| 2 | FR64S | SOFTRIDE SPRG 4.5"R 66-77BR | 1 | EA | |||||||||||||
| 3 | FR64S | SOFTRIDE SPRG 4.5"R 66-77BR | 1 | EA | |||||||||||||
| 4 | 176EBS | SYS BOX, 7" 66-77 BRONCO | 1 | BX |
| Year | Make | Model | Fitment Info |
|---|---|---|---|
| 1977 | Ford | Bronco - 4WD | -- |
| 1976 | Ford | Bronco - 4WD | -- |
| 1975 | Ford | Bronco - 4WD | -- |
| 1974 | Ford | Bronco - 4WD | -- |
| 1973 | Ford | Bronco - 4WD | -- |
| 1972 | Ford | Bronco - 4WD | -- |
| 1971 | Ford | Bronco - 4WD | -- |
| 1970 | Ford | Bronco - 4WD | -- |
| 1969 | Ford | Bronco - 4WD | -- |
| 1968 | Ford | Bronco - 4WD | -- |
| 1967 | Ford | Bronco - 4WD | -- |
| 1966 | Ford | Bronco - 4WD | -- |
