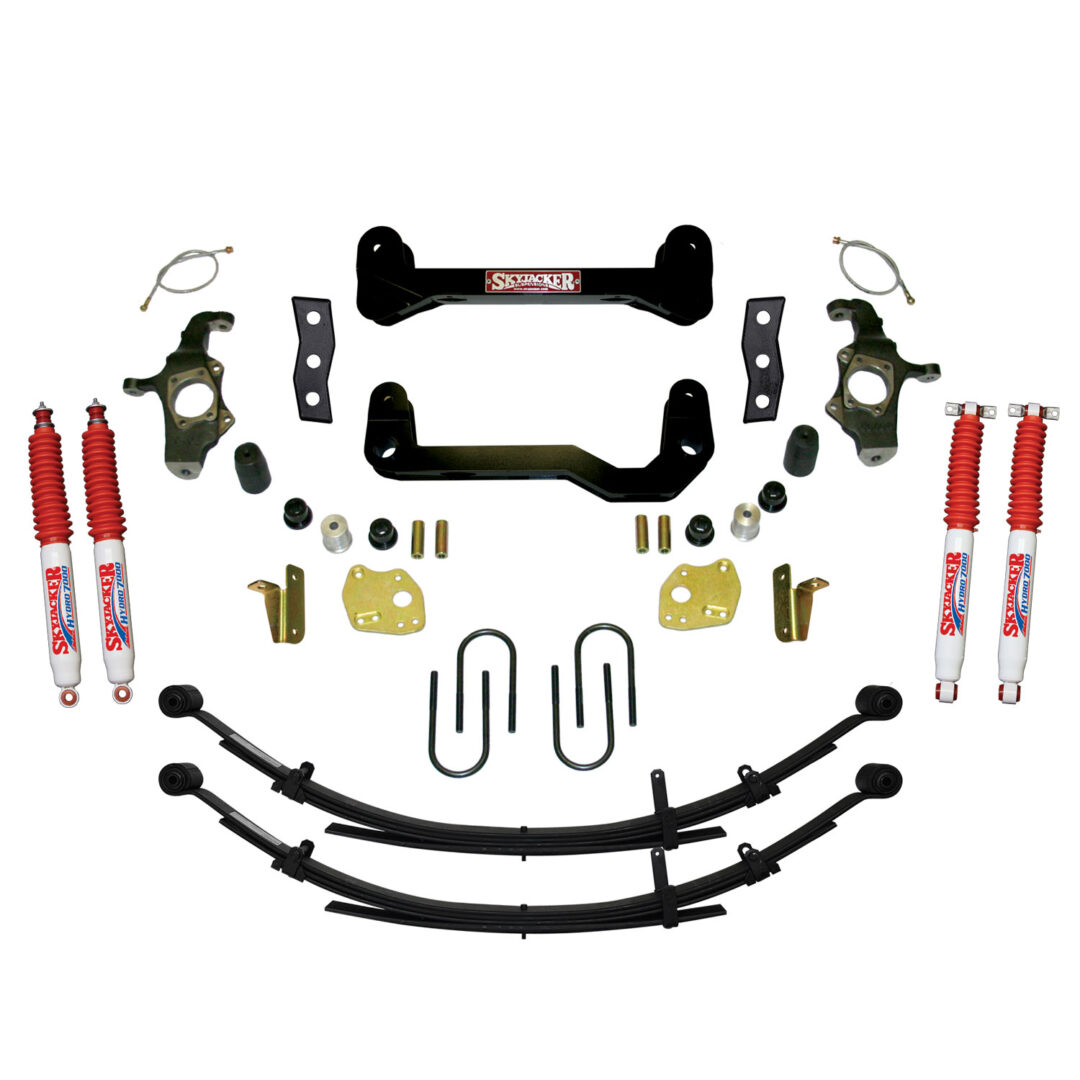

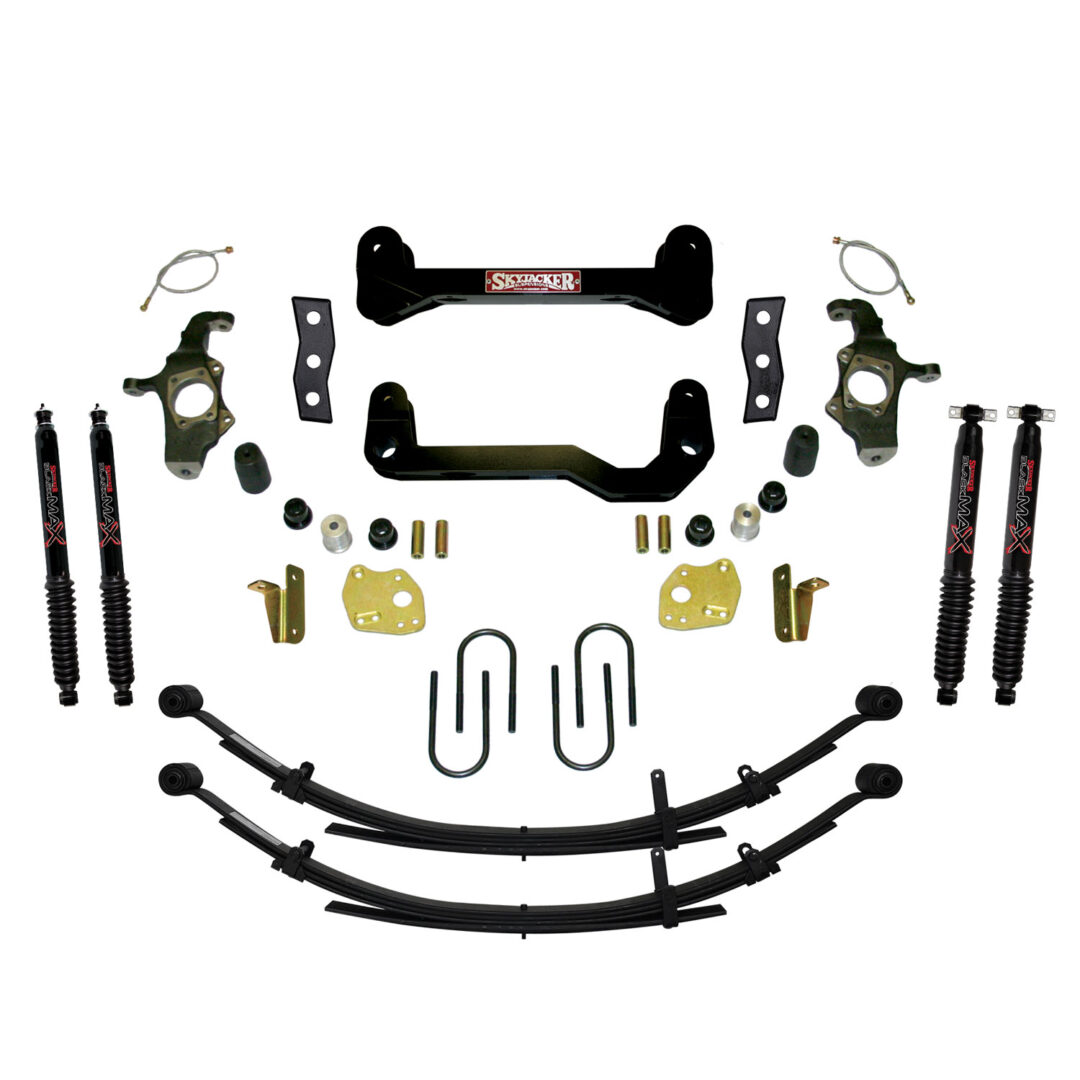

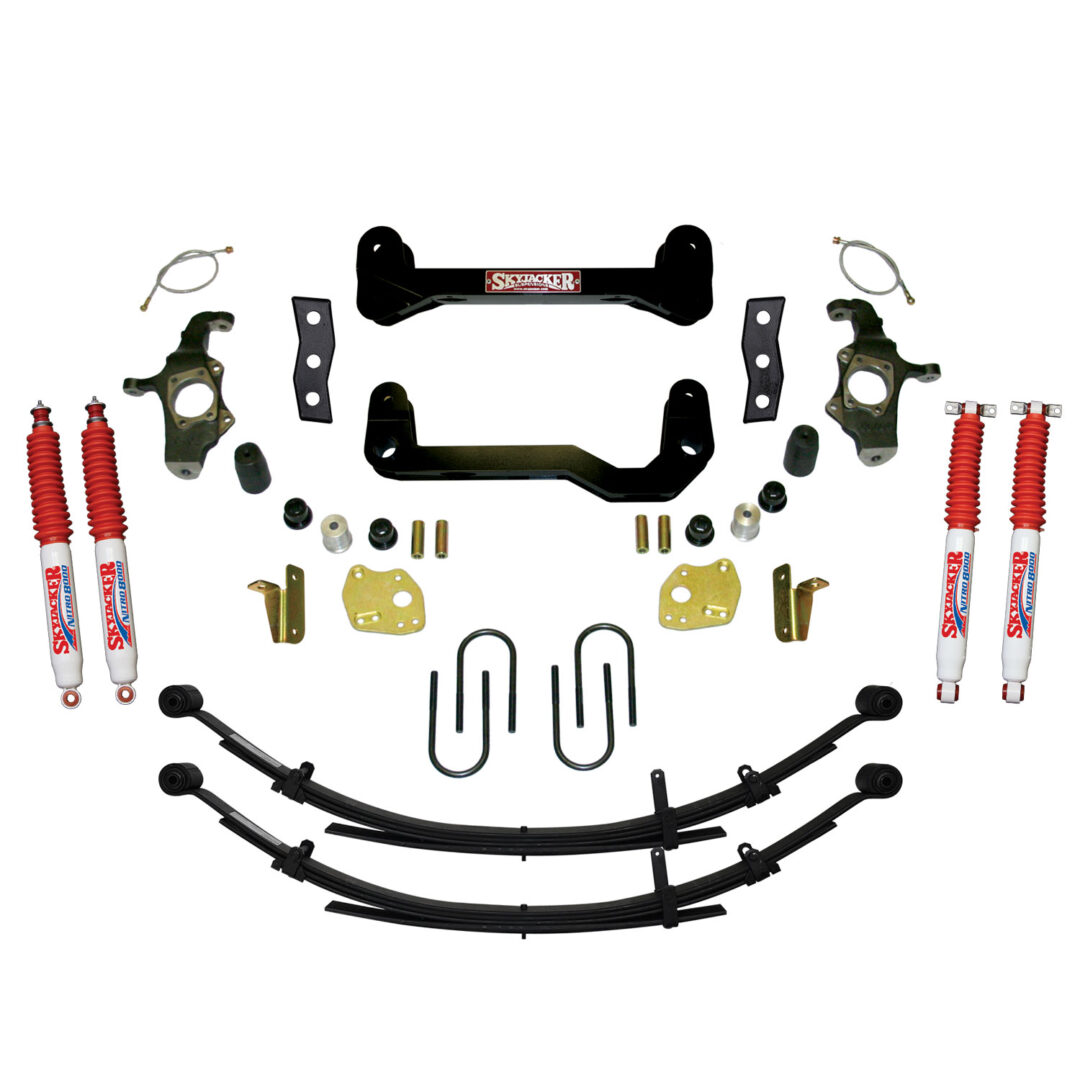

CC409KS – 4 in. Suspension Lift System with Rear Leaf Springs
SKU: CC409KS
4 in. Suspension Lift System with Rear Leaf Springs.
NOTE: Torsion Bar Front end only.
Original price was: $2,490.85 – $2,541.06Price range: $2,490.85 through $2,541.06. Price range: $2,241.75 through $2,286.94Current price is: $2,241.75 – $2,286.94Price range: $2,241.75 through $2,286.94.
Product Notes Important
Can Not Use OEM Wheels, Requires 17 Inch-20 Inch Wheel x 8 Inch wide 4.75 Inch Back Spacing Wheels.
- Description
- Product Notes Important
- Product information
- BOM
- Installation Instructions
- Application Notes
Can Not Use OEM Wheels, Requires 17 Inch-20 Inch Wheel x 8 Inch wide 4.75 Inch Back Spacing Wheels.
| Lift Height | 4 in. |
|---|---|
| UPC | 803696204338 |
| Kit Note | K2. Includes brake line brackets., K24. Can not re-use OEM wheels. Requires 4.75 in. back spacing on wheels. |
| Rear Lift Method | Leaf Springs |
| Max Tire Size | 33 x 11.50 |
| Wheel | 17-20 x 8 |
| Backspacing | 4.75 in. |
| Approximate Install Time | 10 Hours |
| Install Difficulty | Advanced - Cutting and Drilling |
BOM / Components
Component breakdown for this product.
| Line | Component | Description | Qty | UOM | Subcomponents | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | CC409 | COM BOX:04-12 COLO/CAN 4WD | 1 | BX |
CC409 Subcomponents
|
||||||||||||||||||||||||
| 2 | CCR25S | REAR SPRG,2.5-3"COLORAD/CAN | 2 | EA |
Download “I-BL” I-BL.pdf – Downloaded 31575 times – 358.57 KB
Download “I-CC40” I-CC40-REV6.pdf – Downloaded 35463 times – 525.99 KB
| Year | Make | Model | Fitment Info |
|---|---|---|---|
| 2012 | Chevrolet | Colorado - 4WD |
|
| 2012 | GMC | Canyon - 4WD |
|
| 2011 | Chevrolet | Colorado - 4WD |
|
| 2011 | GMC | Canyon - 4WD |
|
| 2010 | Chevrolet | Colorado - 4WD |
|
| 2010 | GMC | Canyon - 4WD |
|
| 2009 | Chevrolet | Colorado - 4WD |
|
| 2009 | GMC | Canyon - 4WD |
|
| 2008 | Chevrolet | Colorado - 4WD |
|
| 2008 | GMC | Canyon - 4WD |
|
| 2007 | Chevrolet | Colorado - 4WD |
|
| 2007 | GMC | Canyon - 4WD |
|
| 2006 | Chevrolet | Colorado - 4WD |
|
| 2006 | GMC | Canyon - 4WD |
|
| 2005 | Chevrolet | Colorado - 4WD |
|
| 2005 | GMC | Canyon - 4WD |
|
| 2004 | Chevrolet | Colorado - 4WD |
|
| 2004 | GMC | Canyon - 4WD |
|
