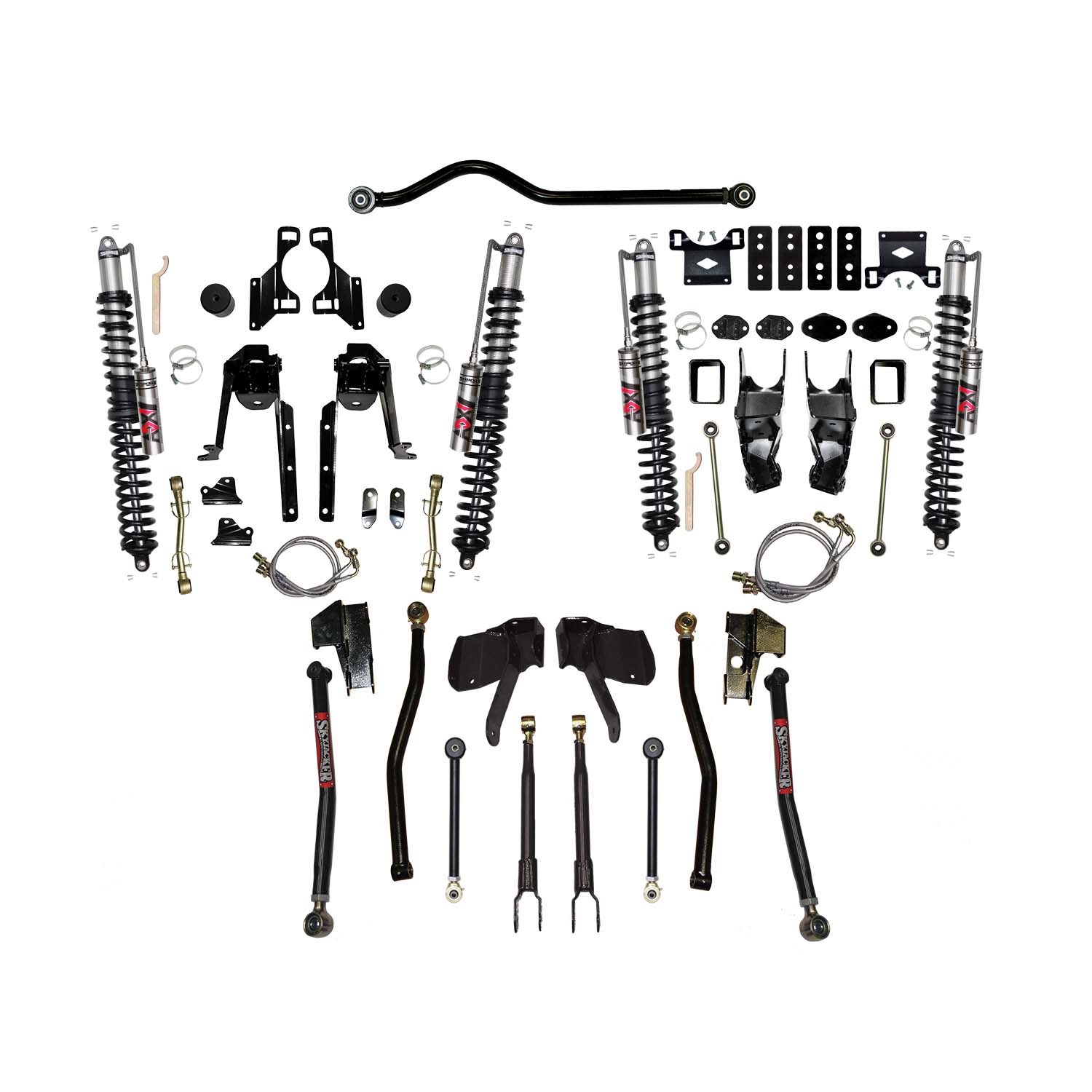

Name: JK44LLSK-SX - 3.5-4.5 in. Long Arm ADX Series Coil-Over Kit | Skyjacker Suspensions
Brand: Skyjacker
SKU: JK44LLSK-SX
Availability: InStock

Description

07-18 Jeep Wrangler JK.
3.5-4.5 in. Long Arm ADX Series Coil-Over Kit.

2012-18 Models with 3.5 Inch Lifts and Up Require Exhaust Spacers part number JK36ESK. Optional Upgrade, Front Air Bump Stop Kit part number JLLSAB, Rear Air Bump Stop Kit part number JKLSABR. Requires OE Rear Drive Shaft Replaced with a Double Carden CV Drive Shaft. 2 Door Models Require Cam Bolts for Optimum Rear Pinion Adjustment, part number CAM700. Optional Tailgate Saver Support System and Spare Tire Relocation Kit, part number TGSSTR1. Optional Interior of Jeep Spare Tire Relocation/Carrier Kit, Works only with 4 Door Models, part number J07STM.

Referenced Parts

SKU: JK36ESK

JK36ESK – 2012-2018 Jeep Wrangler JK Exhaust Spacer Kit

Add to cart

SKU: JLLSAB

JLLSAB – Jeep Wrangler JL Fox Front Air Bump Stop Kit

Add to cart

SKU: JKLSABR

JKLSABR – Jeep Wrangler JK / JKU Rear Air Bump Stop Kit

Add to cart

SKU: CAM700

CAM700 – Cam Bolt

Add to cart

SKU: TGSSTR1

TGSSTR1 – Jeep Wrangler JK Tailgate Saver / Spare Tire Relocator Kit

Add to cart

SKU: J07STM

J07STM – Spare Tire Carrier Kit (2007-2025 Jeep Wrangler JK/JL)

Add to cart

UPC	803696250014
Lift Height	3.5-4.5 in.
Kit Note	E26. 2 Door Models will Require Rear CV Driveshaft., E28. Driveshaft Modifications required., E29. Optional air bump stop kit available. Part# JKLSAB (Front), Part# JKLSABR (Rear)., Factory Skid Plates Can Not be Re-Used with Long Arm Series.
Max Tire Size	35 x 12.50
Wheel	16-20 x 8-10
Backspacing	4.5 in.
Approximate Install Time	12 Hours
Install Difficulty	Advanced - Cutting and Drilling

BOM / Components

Component breakdown for this product.

6 components

Line Component Description Qty UOM Subcomponents

JK62FLS

JK 3.5"-6" FRT C/O SHOCK/PR

JK62FLS Subcomponents

Line	Component	Description	Qty
1	SKY2031-PR	2"C/O SHK 31.08"EXT,12"STRK	1
2	143688	ACCESSORY KIT EA,SKY2031-PR	-2
3	143728	ACCESSORY KIT EA,SKY2026-PR	2
4	2.5X12X200	2.5"IDX12"LX200RATE C/O SPR	2
5	2.5X14X350	2.5"IDX14"LX350RATE C/O SPR	2
6	LSCOWRH-S	SPANNER WRENCH 2.0 C/O	1

JK62FLSB

JK 3.5"-6" FRONT L/S C/O BR

JK62FLSB Subcomponents

Line	Component	Description	Qty
1	JKLSBOFDU-B	JKLSBO FRT DRV UPPER C/O BK	1
2	JKLSBOFPU-B	JKLSBO FRT PAS UPPER C/O BK	1
3	H-BOX JKFLSB	HDWR BOX: JK62FLSB COMP BOX	1

JK62RLS

JK 3.5"-6" REAR C/O SHCK/PR

JK62RLS Subcomponents

Line	Component	Description	Qty
1	SKY2026-PR	2"C/O SHK 26.52"EXT,10"STRK	1
2	2.5X10X200	2.5"ID X 10"L X 200 RATE	2
3	2.5X12X250	2.5"IDX12"LX250RATE C/O SPR	2
4	LSCOWRH-S	SPANNER WRENCH 2.0 C/O	1

JK42RLSB

JK 3.5"-4" REAR L/S C/O BRK

JK42RLSB Subcomponents

Line	Component	Description	Qty
1	JKLSBORDSL4-B	JKLSBO 4" REAR DRV LWR C/O	1
2	JKLSBORPSL4-B	JKLSBO 4" REAR PAS LWR C/O	1
3	JKLSBORSB-1	JKLSBO REAR SWAY BAR REL BR	2
4	JKLSBORSB-2	JKLSBO REAR SWAY BAR SPC BR	2
5	JKLSBORSU-1	JKLSBO REAR UPPER C/O BRKT	2
6	JKLSBORSU-2	JKLSBO REAR UPR C/O BCK PLT	2
7	JK24RTB-B	JK REAR TRK BAR BRKT	1
8	JKBRC15-B	JK REAR TRK BAR BRACE D44	1
9	SBE504	SWAY BAR LINK JEEP JK REAR	1
10	JKRBL60	REAR BRK LNS,6-7"07>JEEP JK	1
11	JK40RBS-S	JL/JK 4" REAR BUMP STOP BKT	2
12	UN1RR-S	UNI REMOTE RES BRKT / FLAT	2
13	HB-JK40BSSR	HDWR BAG:4"JK BUMP ST SPC R	1
14	HB-JK24RTB	HDWR BAG:JK24RTB TRK BAR BK	1
15	HB-JKBRC15	HDWR BAG: JK REAR BRACE	1
16	HB-JKLSBORSB	HDWR BAG:JKLSBORSB SWAY BAR	1
17	HB-JKLSBORSL	HDWR BAG:JKLSBORSL REAR LWR	1
18	HB-JKLSBORSU	HDWR BAG:JKLSBORSU REAR UPR	1

Showing first 18 of 19 items.

JK46LA-SX

COMP BOX, 4-6" LONG ARM BOX

JK46LA-SX Subcomponents

Line	Component	Description	Qty
1	JKLL46FDSX-AS	JK 4-6" FRT DRV LWR LK ASY	1
2	JKLL46FPSX-AS	JK 4-6" FRT PAS LWR LK ASY	1
3	JKLL46R2SX-AS	JK 4-6" REAR LOWER LINK ASY	2
4	JKUL46FSX-ASY	JK 4"-6" FRONT UPR LK ASY	2
5	JKUL46RSX-ASY	JK 4"-6" REAR UPR LK ASY	2
6	JK46LAFLB-D	JK 4-6" LONG ARM F BKT-DRVR	1
7	JK46LAFLB-P	JK 4-6" LONG ARM F BKT-PASS	1
8	JK46LARLB2-D	4-6" LONG ARM R-BRKT DRIVER	1
9	JK46LARLB2-P	JK 4-6" LONGARM R-BRKT PASS	1
10	HB-JK6FLB	HDWR BAG:JK 6"FRT LINK BRKT	1
11	HB-JK6RLB2	HDWR BAG:6"JK REAR LINK BRK	1
12	HB-JKULF-SX	HDWR BAG:JK UPPER FRT LINK	1
13	HB-JKULR-SX	HDWR BAG:JK UPPER REAR LINK	1
14	I-JK4601	INST SHEET: JK LONG ARM KT	1

JKFTBA717

JK FRT ADJUSTABLE TRACK BAR

JKFTBA717 Subcomponents

Line	Component	Description	Qty
1	JKFTBA10-B	JK FRONT TRACK BAR / 0"-4"	1
2	RR34X14RB	3/4"RH ROD END W/14MM BUSHG	1
3	34RFTJN	3/4" RIGHT HAND JAM NUT	1
4	I-JKFTBA717	INST SHEET: JKFTBA717	1

Download “I-JKRLS” I-JKRLS-REV7.pdf – Downloaded 2944 times – 1.66 MB

Download “I-JKFLS” I-JKFLS-REV6.pdf – Downloaded 2903 times – 1.43 MB

Download “I-JK4601” I-JK4601-REV14.pdf – Downloaded 8078 times – 600.50 KB

Download “I-BL” I-BL.pdf – Downloaded 26153 times – 358.57 KB

Download “I-SBE126-127” I-SBE126-127.pdf – Downloaded 4745 times – 197.45 KB

Download “I-JKFTBA717” I-JKFTBA717-REV3.pdf – Downloaded 7901 times – 174.92 KB

Year	Make	Model	Fitment Info
2018	Jeep	Wrangler (JK) - 2-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2018	Jeep	Wrangler (JK) - 4-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2017	Jeep	Wrangler (JK) - 2-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2017	Jeep	Wrangler (JK) - 4-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2016	Jeep	Wrangler (JK) - 2-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2016	Jeep	Wrangler (JK) - 4-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2015	Jeep	Wrangler (JK) - 2-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2015	Jeep	Wrangler (JK) - 4-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2014	Jeep	Wrangler (JK) - 2-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2014	Jeep	Wrangler (JK) - 4-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2013	Jeep	Wrangler (JK) - 2-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2013	Jeep	Wrangler (JK) - 4-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2012	Jeep	Wrangler (JK) - 2-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2012	Jeep	Wrangler (JK) - 4-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2011	Jeep	Wrangler (JK) - 2-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2011	Jeep	Wrangler (JK) - 4-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2010	Jeep	Wrangler (JK) - 2-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2010	Jeep	Wrangler (JK) - 4-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2009	Jeep	Wrangler (JK) - 2-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2009	Jeep	Wrangler (JK) - 4-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2008	Jeep	Wrangler (JK) - 2-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2008	Jeep	Wrangler (JK) - 4-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2007	Jeep	Wrangler (JK) - 2-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
2007	Jeep	Wrangler (JK) - 4-Door 4WD	3.5-4.5 in. Coil-Over Kit Long Arm
