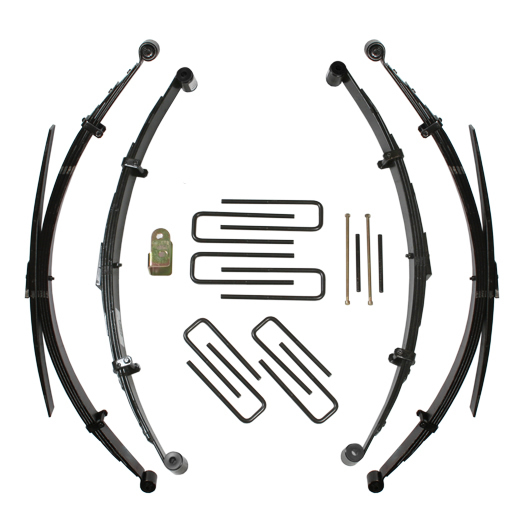

7 in. Suspension Lift System with M95 Performance Shocks. Includes Front/Rear Leaf Springs; Front/Rear UBolt Kits; Front/Rear Spring Bushing Kits; Track Bar Bracket
Orders Over $499
Free Shipping to the Lower 48
60 Days
Limited Lifetime Warranty
SkyArmor Plus™ Factory Supplemental Limited Warranty program
Install Instructions/ Master Catalog
Find a Dealer Near You
Search for Shocks by Stroke, Length, etc.
How to Select the Right Length Coilovers for Your Build
Skyjacker 2.0 vs 2.5 Coilovers – Quick Breakdown
Compare your current and new tire size.
How to identify the different 14-18 GM factory control arm variations
Proven Compliant with FMVSS 126 Safety Standards
Lift Kits
Leveling Kits
Coil Springs
Leaf Springs
Add-A-Leafs
Fitted Leafs
ADX 2.0 Remote Reservoir
Gas Charged 200 PSI Aluminum IFP Remote Reservoir
ADX 2.0 Monotube
Gas Charged 200 PSI Aluminum IFP Monotube
M95 Monotube
Gas Charged 200 PSI Monotube IFP
BlackMAX
Advanced Foam Cell Hydraulic
Nitro 8000
Gas Charged 150 PSI
Hydro 7000
Hydraulic Velocity Sensitive
Coilovers by Application
Shop Coilovers for your Specific Vehicle.
2 in. Universal Coilovers
Taylor to fit your needs. Ranging from 10-14 in. stroke.
2.5 in. Universal Coilovers
Taylor to fit your needs. We Offer options with 12 and 14 in. stroke.
Drive Shafts
Transfer Case Lowering Kits
Steering Stabilizers
Pitman Arms
Steering Arms
Sway Bar Endlinks
Skid Plates
Spare Tire Relocation
Tailgate Saver
U-Bolts
Sale
T307PKS-M – 7 in. Suspension Lift System with M95 Performance Shocks
SKU: T307PKS-M
7 in. Suspension Lift System with M95 Performance Shocks.
From:
Original price was: $1,743.97.$1,569.60Current price is: $1,569.60.
Product Notes Important
- Description
- Product Notes Important
- Product information
- BOM
- Installation Instructions
- Application Notes
Requires Adjustable Drag Link part number TDL5. Requires Lengthening of Front Driveshaft and Modifying Factory Steering Arm so that Ball is Pointing Out the Top of Arm Rather than Pointing Down. Requires Extended Stainless Steel Brake Lines part numbers FBL30, and part number RBL30.
Referenced Parts
| Hashtag | T307PKS-M |
|---|---|
| Lift Height | 7 in. |
| UPC | 803696234274 |
| Max Tire Size | 37 x 12.50 |
| Wheel | 15-20 x 8 |
| Backspacing | 3.75 in. |
| Approximate Install Time | 8 Hours |
| Install Difficulty | Moderate - No Cutting or Welding |
BOM / Components
Component breakdown for this product.
| Line | Component | Description | Qty | UOM | Subcomponents | ||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | T307PS | SYS BOX, 7" 79-85 TOYOTA SY | 1 | BX |
T307PS Subcomponents
|
||||||||||||||||||||||||||||||||||||
| 2 | T307S | SOFTRIDE SPRG 7" FRT TOYOTA | 2 | EA | |||||||||||||||||||||||||||||||||||||
| 3 | TR60S | SOFTRIDE SPRG 6"REAR TOYOTA | 2 | EA | |||||||||||||||||||||||||||||||||||||
| 4 | M9556 | MONOTUBE SHOCK, M9556 | 2 | EA | |||||||||||||||||||||||||||||||||||||
| 5 | M9536 | MONOTUBE SHOCK, M9536 | 2 | EA | |||||||||||||||||||||||||||||||||||||
| 6 | TDL5 | OFFSET/ADJ DRG LNK,79-85TOY | 1 | EA | |||||||||||||||||||||||||||||||||||||
| 7 | 9175 | SNGL STAB KT,SILVER W/BK BO | 1 | KT |
9175 Subcomponents
|
||||||||||||||||||||||||||||||||||||
| 8 | 9276 | DUAL STAB KT,SILVER W/BK BO | 1 | KT |
9276 Subcomponents
|
||||||||||||||||||||||||||||||||||||
| 9 | FBL30 | FRONT BRK LNS,79-95TOY PKUP | 1 | PR |
FBL30 Subcomponents
|
||||||||||||||||||||||||||||||||||||
| 10 | RBL30 | REAR BRK LINE 64-95 TOYOTA | 1 | EA |
RBL30 Subcomponents
|
| Year | Make | Model | Fitment Info |
|---|---|---|---|
| 1985 | Toyota | Pickup - 4WD |
|
| 1984 | Toyota | Pickup - 4WD |
|
| 1983 | Toyota | Pickup - 4WD |
|
| 1982 | Toyota | Pickup - 4WD |
|
| 1981 | Toyota | Pickup - 4WD |
|
| 1980 | Toyota | Pickup - 4WD |
|
| 1979 | Toyota | Pickup - 4WD |
|
