TJ40RR1LTK – 4 in. Dual Rate Long Travel Long Arm Lift Kit Rock Ready 1 Series

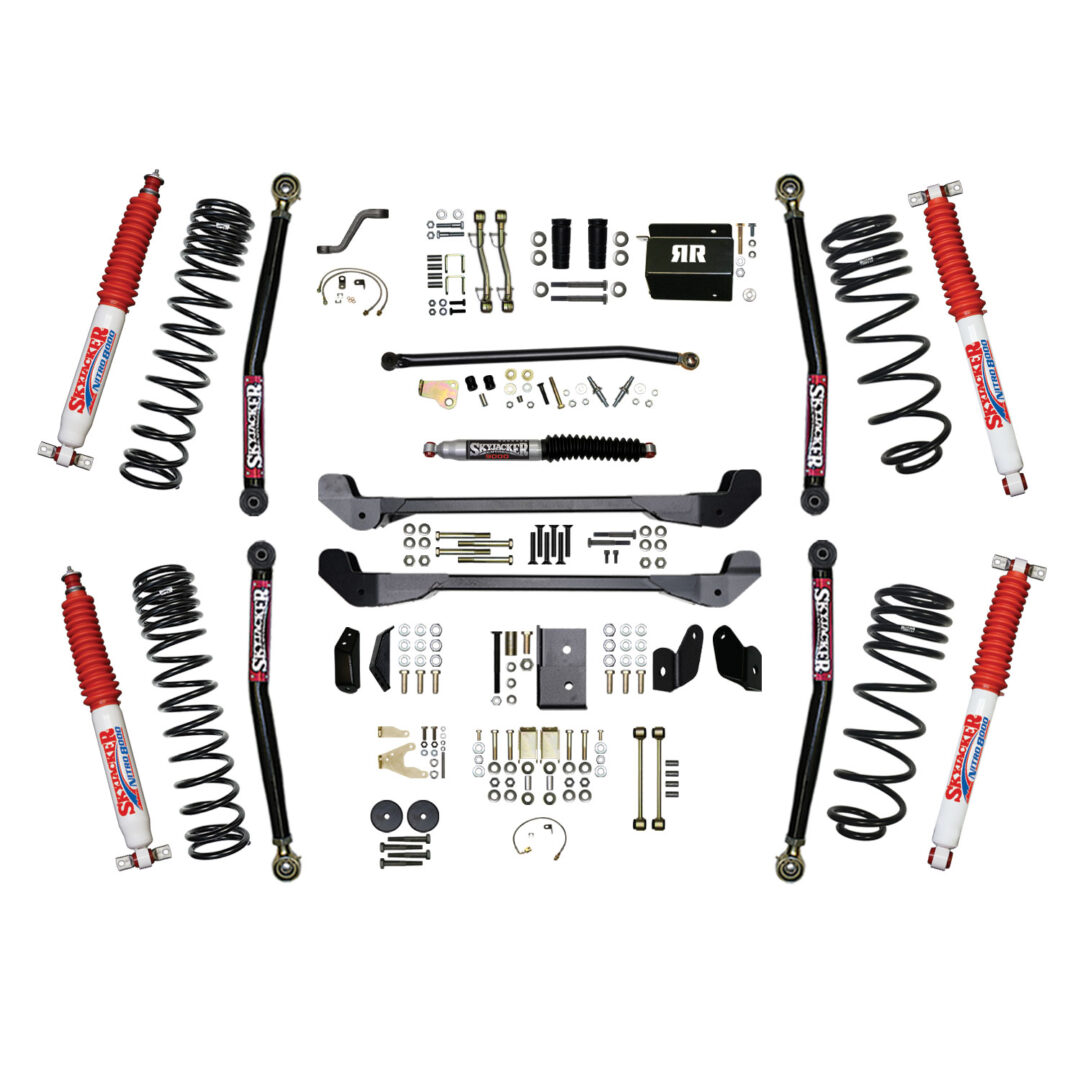

4 in. Lift Kit With Dual Rate Long Travel Coil Springs, Lower Flex Links, Pitman Arm, Front Track Bar, Brakelines, Bump Stop Spacers, Sway Bar End Links, Rear Track Bar Bracket.

Starting At: From: $2,339.56

California Residents
WARNING: Cancer and/or other Reproductive Harm.

SKU: TJ40RR1LTK Category:


Lift Height

4 in.

Max Tire Size



15-20 x 8



With Skyjacker's Rock Ready 4-inch Lift System, you achieve more of what you are looking for in a performance suspension: more articulation, more flex, more travel, and more affordable fun. Our long arm system rides and handles much better on the highway and is untouchable on the trails.

Skyjacker re-engineered the TJ's suspension geometry via an integrated bolt-on sub-frame assembly. The sub-frame corrects proper driveline angle while retaining as much ground clearance as possible. It really allows our Bent High-Clearance Lower Adjustable Links to flex their strength.

The upper frame mount has pressed-in HD OEM style vulcanized rubber bushings and the axle mount has Rock Jock's 2-1/2 in. forged Johnny Joints. These Johnny Joints provide over 30 degrees of unrestricted Flex movement in any direction. These links give you the extra flexibility and performance you desire to go to more extreme places.

Skyjacker specifically engineered a 2-stage dual rate long travel coil. Spring rate progression is from a first Flex Rate to a second Ride Rate.

First Flex Rate stage delivers a comfortable ride with the ability to flex/expand during full articulation as the suspension drops (full droop). This keeps the coil springs seated in the upper coil mount/bucket and the tires in contact with the terrain.

Second Ride Rate stage only engages after compression past Flex Rate: resulting in a smoother ride.

Skyjacker's ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks deliver modern technology in the design with an innovative off-road race-inspired full-displaced valving system.

From Higher Speeds to a Crawl, Skyjacker's ADX 2.0 Works. The external remote reservoir separates the nitrogen gas from the oil with an Internal Floating Piston (IFP). The majority of the reservoir contains pressurized nitrogen gas. The IFP prevents the gas and oil from mixing or foaming (cavitation).

Lift system works with OEM Electronic Stability Control (ESC) System.


There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

YearMakeModelFitment Info
2006JeepWrangler (TJ) - 4WD
  • Does not fit Unlimited Models
2005JeepWrangler (TJ) - 4WD
  • Does not fit Unlimited Models
2004JeepWrangler (TJ) - 4WD
  • Does not fit Unlimited Models
2003JeepWrangler (TJ) - 4WD
  • Does not fit Unlimited Models
2002JeepWrangler (TJ) - 4WD
  • Does not fit Unlimited Models
2001JeepWrangler (TJ) - 4WD
  • Does not fit Unlimited Models
2000JeepWrangler (TJ) - 4WD
  • Does not fit Unlimited Models
1999JeepWrangler (TJ) - 4WD
  • Does not fit Unlimited Models
1998JeepWrangler (TJ) - 4WD
  • Does not fit Unlimited Models
1997JeepWrangler (TJ) - 4WD
  • Does not fit Unlimited Models
