JL36SLSKR3-SX – 3.5-6 in. ADX Series Coil-Over Lift Kit for Jeep Wrangler JL Rubicon 392
Jeep Wrangler JL Unlimited Rubicon 392.

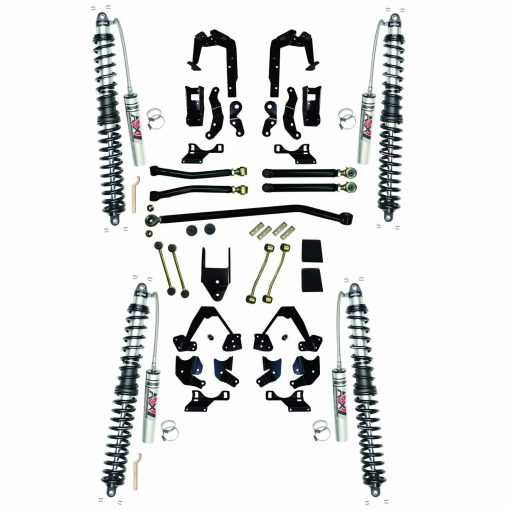

3.5-6 in. ADX Series Coil over Lift Kit with Coil over Shocks, Coil over Brackets, Front Adjustable Track Bar, Lower Flex Links, Bump Stop Spacers, Sway Bar End Links, Brake Line Extension Brackets, And Rear Track Bar Bracket.
Original price was: $6,003.34.$5,403.01Current price is: $5,403.01.
California Residents
WARNING: Cancer and/or other Reproductive Harm. www.p65warnings.ca.gov
| UPC | 803696288949 |
|---|---|
| Lift Height | 3.5-6 in. |
| Max Tire Size | 38-40×13.5 |
| Wheel | 17-20 x 9 |
| Backspacing | 5 in. |
Go over-and-above in a big way. Raise your Jeep Wrangler Unlimited Rubicon 392 to new heights with Skyjacker's performance Coilover Conversion suspension package. On your Rubicon 392, coil springs and shocks are primary determining factors in ride quality and suspension performance. Skyjacker put the two together into one complete package.
2-inch OD Coilover Shock with remote reservoir includes dual coil springs. Skyjacker’s legendary Softride® coil spring technology engineered two separate coil spring rates to deliver a quiet consistent controlled stability and smooth riding comfort with great articulation.
Precise CNC laser cut and precision formed in CNC press brake, all bracketry for coilover shock / reservoir mounts connect to / around OEM mounts. OEM coil spring frame and lower shock mounts remain intact. Skyjacker Coilover Lift Kit fits Rubicon OEM width axles.
Front and Rear Value Flex Lower Links maintain proper driveline phasing and alignment. Adjustability allows proper caster settings to improve handling. Formed from 2-inch OD x 0.188 wall DOM tubing with pressed-in OEM style steel encased rubber bushings at the frame and the axle mount has Rock Jock’s 1-1/4-inch forged Johnny Joints. These Johnny Joints provide over 30 degrees of unrestricted Flex movement in any direction.
Front and Rear Bump Stop Spacers keep suspension travel safely in check. Front and Rear Extended Length Sway Bar End Links allow full articulation as suspension drops (full droop). These end links include Skyjacker installed pressed-in HD OEM style rubber bushings.
Front Adjustable Track Bar includes Skyjacker installed pressed-in HD OEM style rubber bushing at frame mount. Adjustable axle mount end is a 3/4-in. Heavy-Duty Rod End, Jam Nut and Alignment Bushings. A heavy-duty Rear Track Bar Bracket is included to center axle under vehicle to address new ride height and help keep factory roll center.
From higher speeds to a slow advance, this Coilover Shock Kit works.
| Year | Make | Model | Fitment Info |
|---|---|---|---|
| 2023 | Jeep | Wrangler (JL) - 4-Door Rubicon 392 4WD | -- |
| 2022 | Jeep | Wrangler (JL) - 4-Door Rubicon 392 4WD | -- |
| 2021 | Jeep | Wrangler (JL) - 4-Door Rubicon 392 4WD | -- |
